BCE Pattern in a Monolith: Clean Architecture for Complex Systems

Many companies start with a monolith because it is simple and fast to implement in the beginning. Short development cycles, low infrastructure complexity, and a straightforward deployment process make it especially attractive in early project phases. However, as business complexity grows, typical challenges begin to appear:

• increasing coupling between components
• unclear responsibilities
• business logic that is difficult to test
• decreasing maintainability

The key question is therefore:

How can a monolith remain maintainable, modular, and future-proof in the long term?

The Boundary-Control-Entity (BCE) pattern provides a structured answer to this question. It creates clear responsibilities within a system and allows even large monoliths to grow in a controlled way. At the same time, it makes a later migration toward microservices significantly easier.

---

#What is the BCE Pattern?

The BCE pattern divides software architecture into three clearly defined roles:

• Boundary The interface to the outside world — for example REST APIs, messaging adapters, or external integrations.

• Control Orchestrates use cases and controls the application flow. This is where the actual application logic lives.

• Entity Represents business objects and business rules — independent of UI or infrastructure.

This separation is intentionally kept simple, but is extremely effective. It ensures that each layer has a clearly defined responsibility and does not mix concerns with other parts of the system.

---

#Why is this important?

In many real-world projects, the boundaries between presentation, business logic, and persistence become blurred. This leads to typical problems:

• controllers contain business logic
• services directly access foreign domains
• entities know infrastructure details
• tests become complex and unstable

The BCE pattern directly counteracts these problems:

• Clarity Developers immediately know where each kind of logic belongs.

• Testability Each layer can be tested in isolation.

• Maintainability Changes remain local and have only minimal impact on other areas.

• Extensibility New features can be integrated in a structured way.

---

#Why BCE in a Monolith?

A monolith is not bad by default. Quite the opposite: a well-structured monolith can be operated and evolved efficiently for many years.

The problem only starts when structure is missing.

The BCE pattern helps establish exactly this structure:

• clear separation of business domains
• defined dependency directions
• reduced coupling

Each domain organizes itself internally:

• its own boundaries for external communication
• its own control classes for use cases
• its own entities as the business model

This creates what is known as a modular monolith.

The key advantage:

A later split into microservices is not forced, but prepared.

Domains can be extracted when needed without having to rethink the entire system.

---

#Our Approach: Domain-Based Structure

We structure the monolith strictly by business domains:

de.acmebank.person
de.acmebank.konto
de.acmebank.rechnung
de.acmebank.kredit
de.acmebank.buchungen

Within each domain, the same structure is used:

• Boundary → REST APIs, adapters, external interfaces
• Control → use-case logic and orchestration
• Entity → business models and rules
• Repository → persistence access

This repetition is intentional: It provides orientation and reduces cognitive load within the team.

---

#Architectural Principle: Dependency Direction

One of the most important rules in the BCE pattern is:

Dependencies always point inward

Boundary → Control → Entity

In concrete terms, this means:

• Boundary knows Control
• Control knows Entity
• Entity knows nothing outside the domain

Cross-domain communication happens exclusively through boundaries.

This prevents hidden coupling and creates clear interfaces.

---

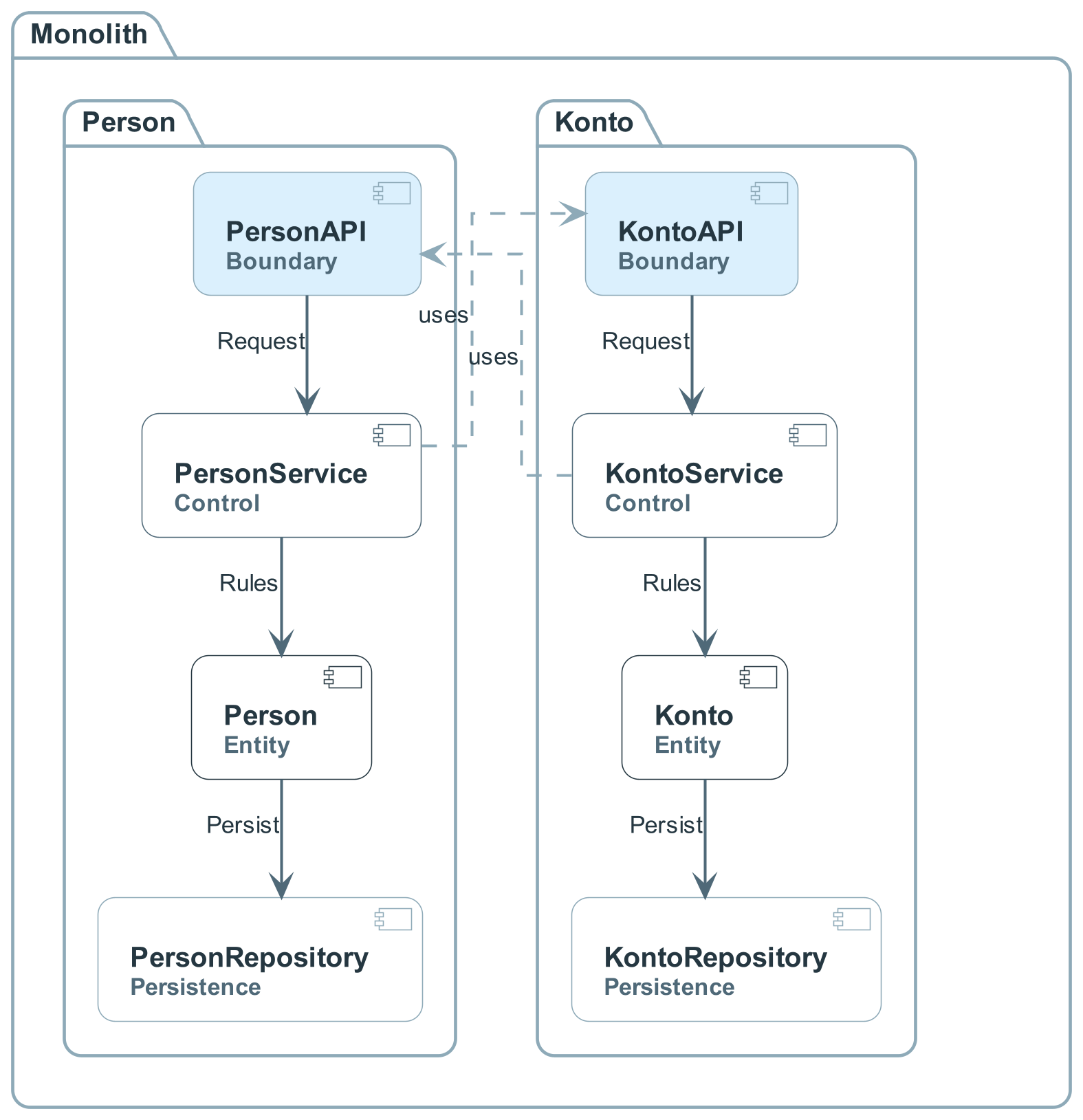

#Optimized Architecture Sketch

#BCE in Detail

#Boundary

The boundary layer is the entry point into the system.

Typical responsibilities:

• receiving requests
• validating input
• mapping DTOs to domain objects
• returning responses

Important: No business logic!

---

#Control

The control layer represents the application layer.

Responsibilities:

• implementing use cases
• orchestrating workflows
• coordinating multiple entities
• calling external boundaries

This is where the actual intelligence of the application lives.

---

#Entity

Entities form the business core of the application.

Characteristics:

• contain business rules
• are independent of frameworks
• have no infrastructure dependencies

The goal is a stable, long-lived domain model.

---

#Best Practices

Some proven rules for using BCE:

• No business logic in the boundary

• No direct coupling between domains

• Entities remain free of technical dependencies

• Model use cases clearly

• Strictly follow dependency rules

• Enforce communication through boundaries

These rules seem simple, but they have a huge impact in large systems.

---

#Example with Spring Boot

// Boundary
@RestController
@RequestMapping("/api/konto")
public class KontoApi {

    private final KontoService kontoService;

    public KontoApi(KontoService kontoService) {
        this.kontoService = kontoService;
    }

    @PostMapping
    public ResponseEntity<KontoDto> create(@RequestBody KontoDto dto) {
        Konto konto = kontoService.create(dto.getNummer(), dto.getSaldo());
        return ResponseEntity.ok(KontoMapper.toDto(konto));
    }
}

// Control
@Service
public class KontoService {

    private final KontoRepository kontoRepository;

    public KontoService(KontoRepository kontoRepository) {
        this.kontoRepository = kontoRepository;
    }

    public Konto create(String nummer, BigDecimal saldo) {
        Konto konto = new Konto(nummer, saldo);
        konto.validate();
        return kontoRepository.save(konto);
    }
}

// Entity
public class Konto {

    private final String nummer;
    private BigDecimal saldo;

    public Konto(String nummer, BigDecimal saldo) {
        this.nummer = nummer;
        this.saldo = saldo;
    }

    public void validate() {
        if (saldo.compareTo(BigDecimal.ZERO) < 0) {
            throw new IllegalArgumentException("Balance must not be negative");
        }
    }
}

---

#Conclusion

The BCE pattern is a simple but highly effective way to structure complex systems.

It helps to:

• keep monoliths maintainable
• make business boundaries visible
• reduce complexity
• prepare future migrations

The most important point:

BCE does not make your monolith smaller — but it structures it in a way that keeps it scalable in the long term.
